Semi-Analytic Solutions for Simple Structures

Simply-Supported Rectangular Plates

import numpy as np

size = Lx, Ly = (600., 800.)
E = 2890.
nu = 0.2
t = 25.0

from sigmaepsilon.solid.fourier import RectangularPlate
from polymesh import PolyData
from polymesh.grid import grid
from polymesh.tri.trimesh import triangulate
from polymesh.topo.tr import Q4_to_T3

G = E/2/(1+nu)
D = np.array([[1, nu, 0], [nu, 1, 0], [0., 0, (1-nu)/2]]) * \
    t**3 * (E / (1-nu**2)) / 12
S = np.array([[G, 0], [0, G]]) * t * 5 / 6

loads = {
    'LG1': {
        'LC1': {
            'type': 'rectangle',
            'x': [[0, 0], [Lx, Ly]],
            'v': [0, 0, -0.01],
        },
        'LC2': {
            'type': 'rectangle',
            'r': [0.2*Lx, 0.5*Ly, 0.2*Lx, 0.3*Ly],
            'v': [0, 0, -100],
        }
    },
    'LG2': {
        'LC3': {
            'type': 'point',
            'x': [Lx/3, Ly/2],
            'v': [0, 0, -10],
        },
        'LC4': {
            'type': 'point',
            'x': [2*Lx/3, Ly/2],
            'v': [0, 0, 10],
        }
    },
}

shape = nx, ny = (30, 40)
gridparams = {
    'size': size,
    'shape': shape,
    'origo': (0, 0),
    'start': 0,
    'eshape': 'Q4'
}
coords_, topo = grid(**gridparams)
coords = np.zeros((coords_.shape[0], 3))
coords[:, :2] = coords_[:, :]
del coords_
coords, triangles = Q4_to_T3(coords, topo)
triobj = triangulate(points=coords[:, :2], triangles=triangles)[-1]
Mesh = PolyData(coords=coords, topo=triangles)
centers = Mesh.centers()

plate = RectangularPlate(size, (50, 50), D=D, S=S)
results = plate.solve(loads, centers)

---------------------------------------------------------------------------
TypeError                                 Traceback (most recent call last)
Cell In [2], line 56
     53 Mesh = PolyData(coords=coords, topo=triangles)
     54 centers = Mesh.centers()
---> 56 plate = RectangularPlate(size, (50, 50), D=D, S=S)
     57 results = plate.solve(loads, centers)

TypeError: __init__() got an unexpected keyword argument 'D'

import matplotlib.pyplot as plt
from matplotlib import gridspec
from dewloosh.mpl.triplot import triplot

plt.style.use('default')


UZ, ROTX, ROTY, CX, CY, CXY, EXZ, EYZ, MX, MY, MXY, QX, QY = list(range(13))
labels = {UZ: 'UZ', ROTX: 'ROTX', ROTY: 'ROTY', CX: 'CX',
          CY: 'CY', CXY: 'CXY', EXZ: 'EXZ', EYZ: 'EYZ',
          MX: 'MX', MY: 'MY', MXY: 'MXY', QX: 'QX', QY: 'QY'}


def plot2d(res2d):
    fig = plt.figure(figsize=(8, 3))  # in inches
    fig.patch.set_facecolor('white')
    cmap = 'jet'
    gs = gridspec.GridSpec(1, 3)
    for i, key in enumerate([UZ, ROTX, ROTY]):
        ax = fig.add_subplot(gs[i])
        triplot(triobj, ax=ax, fig=fig, title=labels[key],
                data=res2d[key, :], cmap=cmap, axis='off')
    fig.tight_layout()

    fig = plt.figure(figsize=(12, 3))  # in inches
    fig.patch.set_facecolor('white')
    cmap = 'seismic'
    gs = gridspec.GridSpec(1, 5)
    for i, key in enumerate([MX, MY, MXY, QX, QY]):
        ax = fig.add_subplot(gs[i])
        triplot(triobj, ax=ax, fig=fig, title=labels[key],
                data=res2d[key, :], cmap=cmap, axis='off')
    fig.tight_layout()

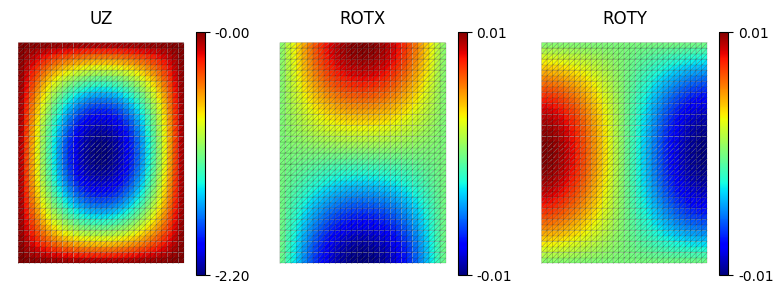

plot2d(results['LG1', 'LC1'])

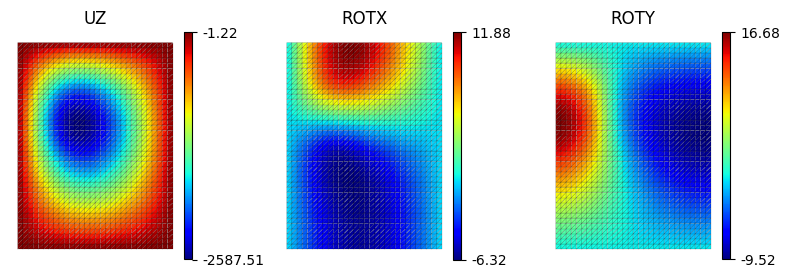

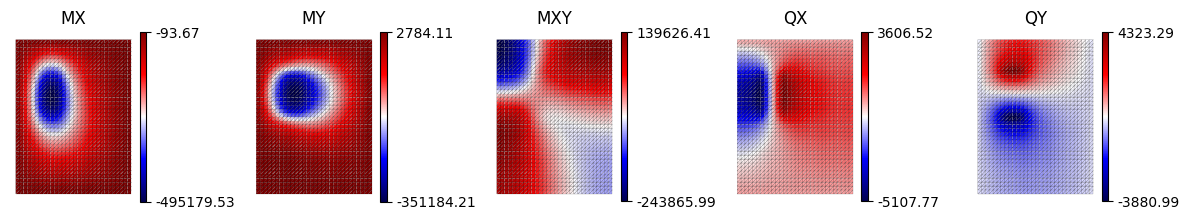

plot2d(results['LG1', 'LC2'])

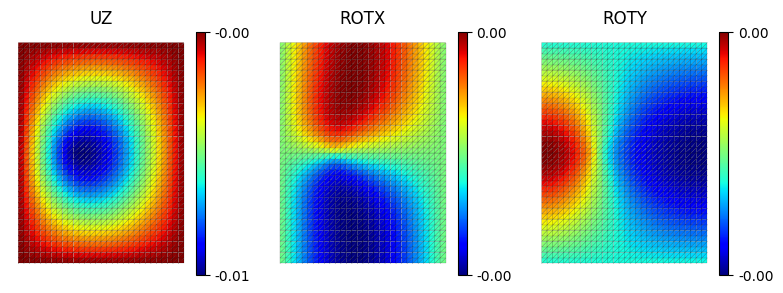

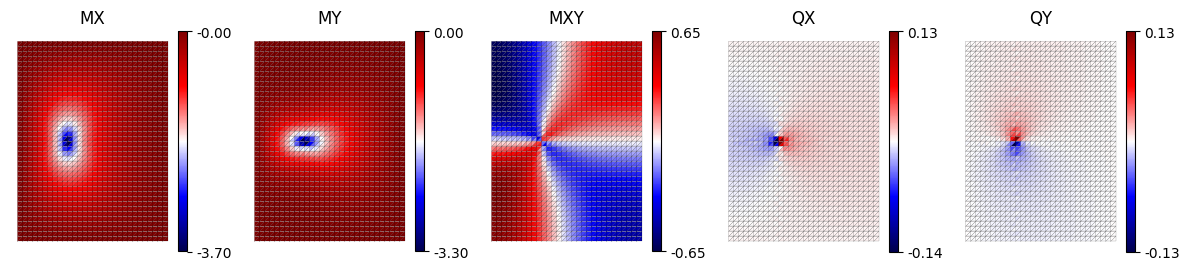

plot2d(results['LG2', 'LC3'])

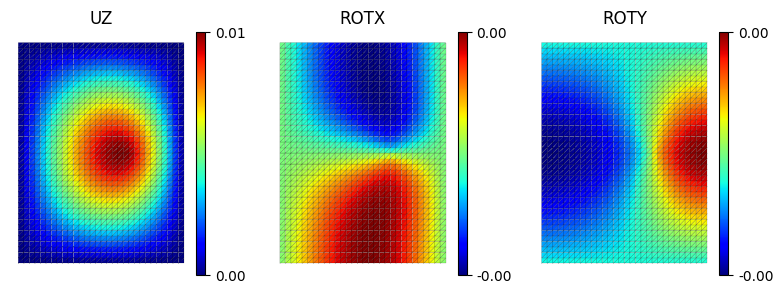

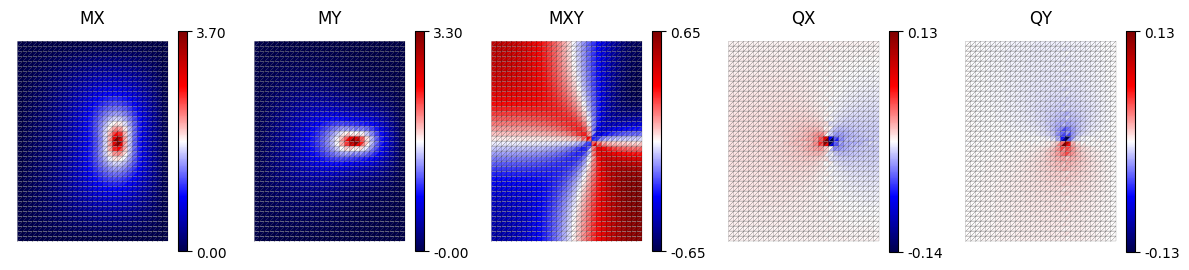

plot2d(results['LG2', 'LC4'])

Simply-Supported Beams

import matplotlib.pyplot as plt

labels = [r'$v$', r'$\theta$', r'$\kappa$',
          r'$\gamma$', r'$M$', r'$V$']
colors = ['b', 'b', 'g', 'g', 'r', 'r']


def plot(x, res):
    fig, axs = plt.subplots(6, 1, figsize=(4, 6), dpi=200, sharex=True)
    for i in range(6):
        axs[i].plot(x, res[:, i], colors[i])
        axs[i].set_xlabel('$x$')
        axs[i].set_ylabel(labels[i])
    plt.subplots_adjust(hspace=0.1)
    plt.rcParams.update({
        "text.usetex": True,
        "font.family": "sans-serif",
    })
    fig.tight_layout()

import numpy as np
from sigmaepsilon.solid.fourier import (NavierBeam, LoadGroup,
                                        PointLoad, LineLoad)

L = 1000.0  # geometry
w, h = 20.0, 80.0  # rectangular cross-section
E, nu = 210000.0, 0.25  # material

I = w * h**3 / 12
A = w * h
EI = E * I
G = E / (2 * (1 + nu))
GA = G * A * 5/6

loads = LoadGroup(
    concentrated = LoadGroup(
        LC1 = PointLoad(x=L/2, v=[1.0, 0.0]),
        LC5 = PointLoad(x=L/2, v=[0.0, 1.0]),
        ),
    distributed = LoadGroup(
        LC2 = LineLoad(x=[0, L], v=[1.0, 0.0]),
        LC6 = LineLoad(x=[L/2, L], v=[0.0, 1.0]),
        )
)
loads.lock()

x = np.linspace(0, L, 500)

Timoshenko Beam

beam = NavierBeam(L, 100, EI=EI, GA=GA)
solution = beam.solve(loads, x)

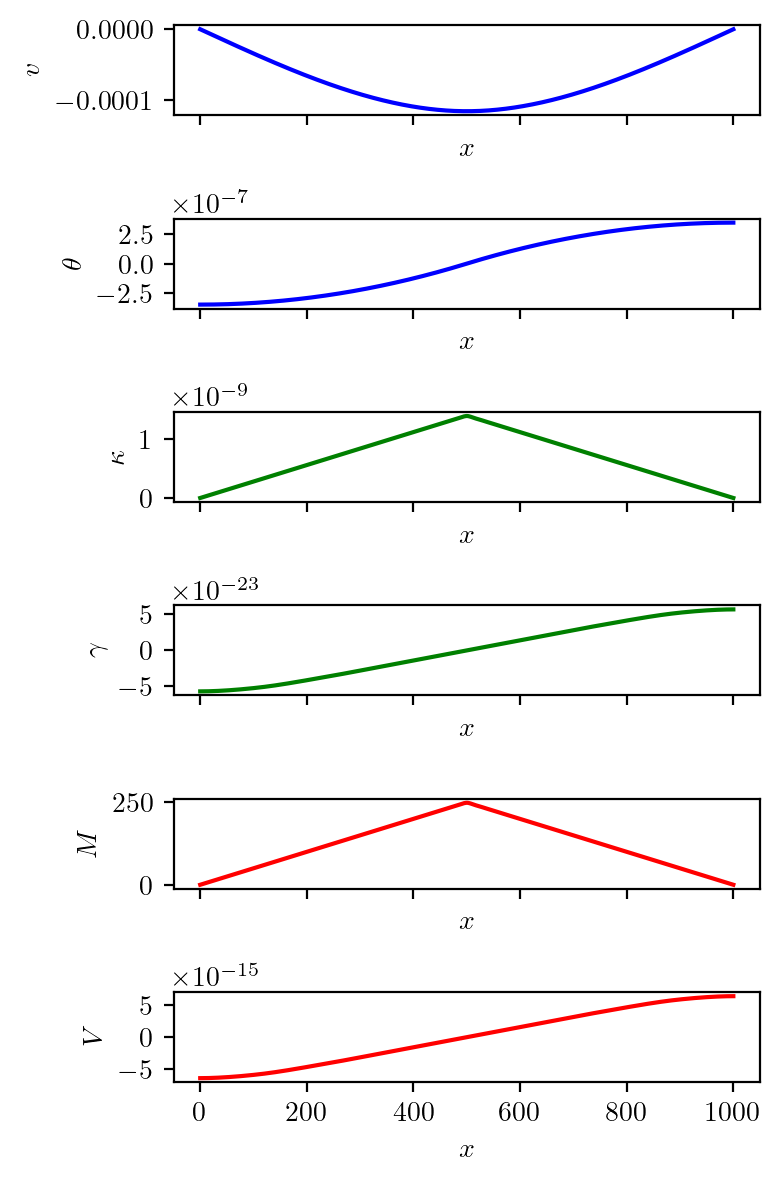

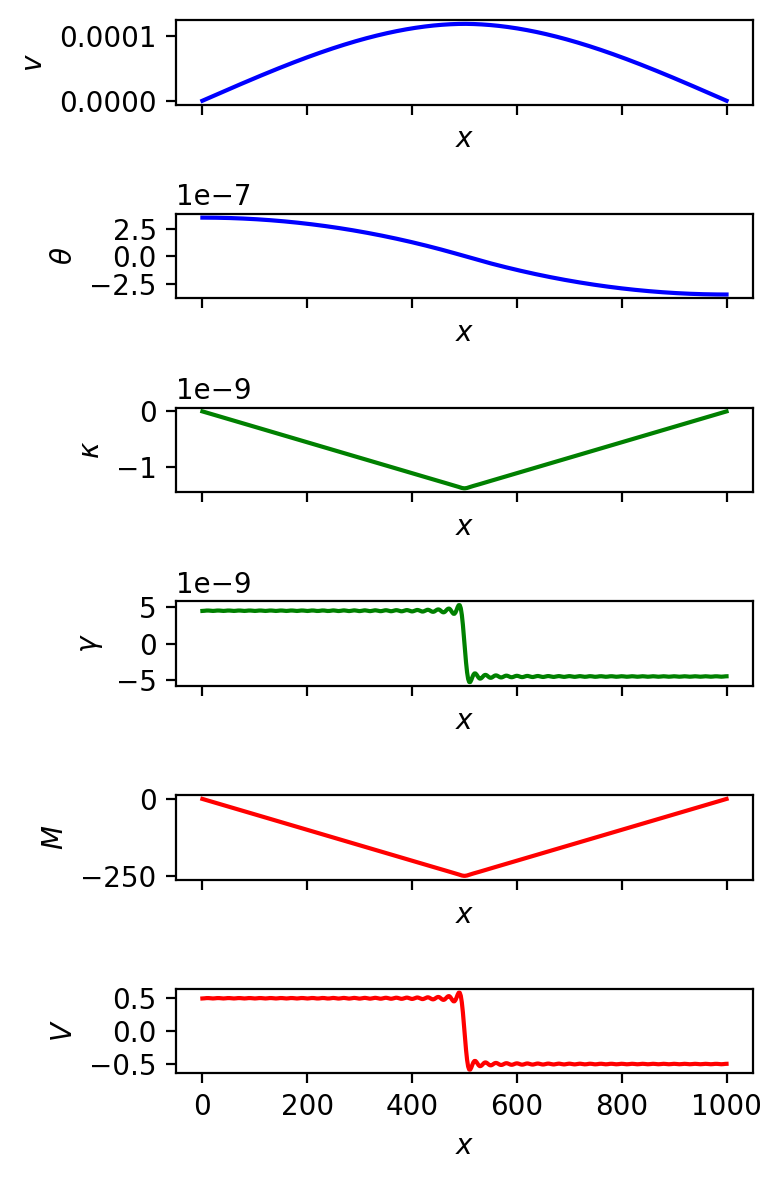

plot(x, solution['concentrated', 'LC1'])

plot(x, solution['distributed', 'LC6'])

Euler-Bernoulli Beam

beam = NavierBeam(L, 100, EI=EI)
solution = beam.solve(loads, x)

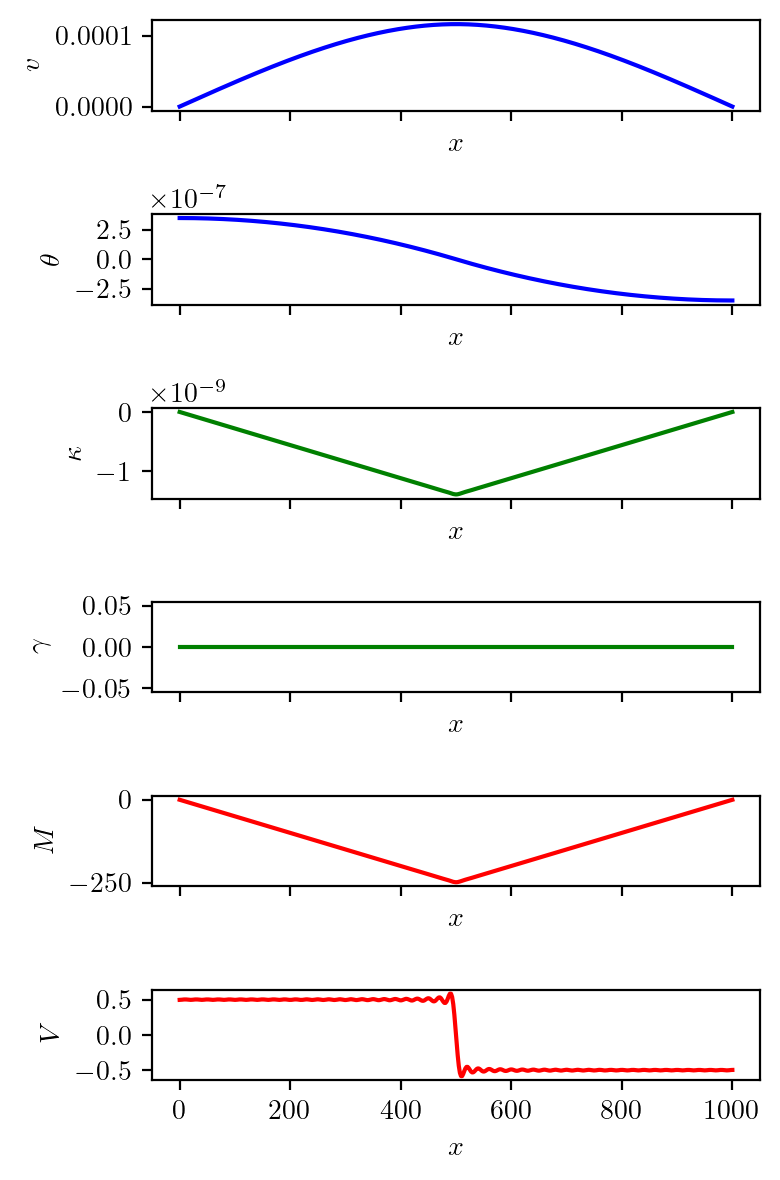

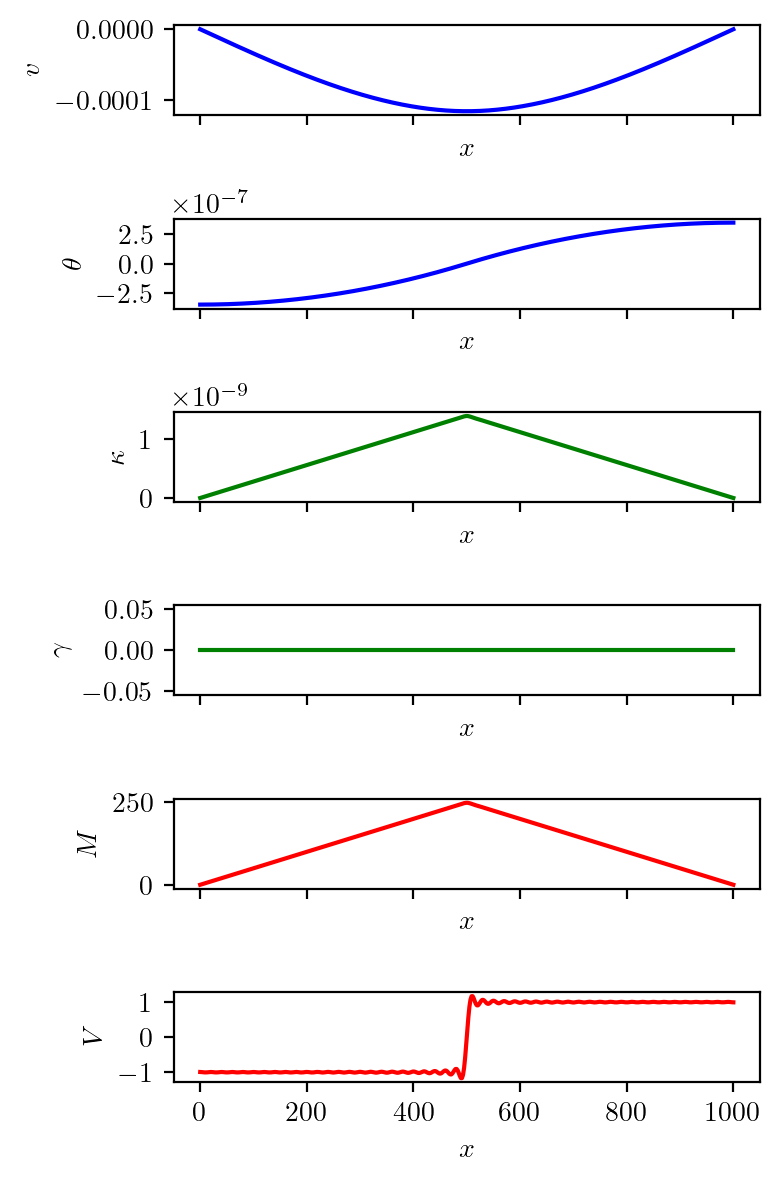

plot(x, solution['concentrated', 'LC1'])

plot(x, solution['distributed', 'LC6'])

loads = {
    'LG1': {
        'LC1': {
            'type': 'point',
            'x': L/3,
            'v': [1.0, 0],
        },
        'LC2': {
            'type': 'point',
            'x': 2*L/3,
            'v': [0, 1.0],
        }
    },
    'LG2': {
        'LC3': {
            'type': 'line',
            'x': [L/3, L/2],
            'v': [1.0, 0],
        },
        'LC4': {
            'type': 'line',
            'x': [2*L/3, L],
            'v': [0, 1.0],
        }
    }
}
